UMI Performance 93-02 F-Body Front Upper A-Arm Mounts Adjustable Factory

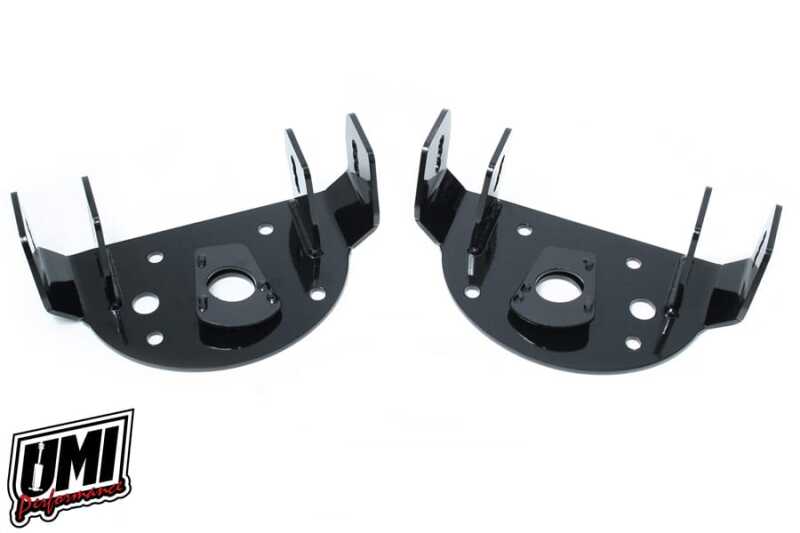

The UMI adjustable upper a-arm mount is a direct bolt in replacement of the original GM mount with some key improvements. The parts feature a unique fabricated design that allows for the mounts to be strong without adding any extra weight. The factory GM mount had a bowl shaped plate that was excellent at holding in water which quickly caused rust to the mount. UMI’s fabricated mounts allow water to easily drain out from the strut bolt, which can extend the life of the front shocks. UMI’s fabricated mounts are also supplied with several upper a-arm adjustment holes for fine tuning the vehicles front suspension. The original factory holes are located at the center and driver has the option to raise or lower the a-arm mounting point 3/8 of an inch. Adjustment holes feature the ability to dial in the front roll center height. Raising the roll center height increases responsiveness and improves camber gain which allows a less aggressive street alignment to perform well when cornering. For street and drag applications choosing the center hole places the a-arm in the factory location. As always, these products are extensively tested on UMI’s test cars in some of the harshest highway and racing environments. This makes them an excellent upgrade for everyone from the street cruiser to the road course expert.

This Part Fits:

Year	Make	Model	Submodel
1993-2002	Chevrolet	Camaro	Base
1993	Chevrolet	Camaro	Indianapolis 500 Pace Car
1996-1997	Chevrolet	Camaro	RS
1993-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
1993-2002	Pontiac	Firebird	Base
1993-2002	Pontiac	Firebird	Formula
1993-2002	Pontiac	Firebird	Trans Am
1994	Pontiac	Firebird	Trans Am GT
