ICON 24 Tacoma 1.25-3in Stage 4 Suspension System Billet
Why this price?
$4,841.85 is MSRP, the lowest price ICON lets us list it at. Additionally, Pro members get $338.93 back on this part.
$4,841.85 − $338.93 = $4,502.92
Not sure it fits? Read our tips.
Fitment tips
Fitment can come down to more than year, make and model. Sometimes the sub-model decides, so start with the fitment table below.
- Drive type. If your car is all-wheel drive, make sure the part is for all-wheel drive, not rear-wheel drive.
- Engine size. For engine parts, make sure the engine size on the product matches your engine.
- Transmission. Manual and automatic cars often take different parts.
- Body style. Sedan or hatch, two-door or four-door, cab and bed length on trucks.
Manufacturer data can sometimes have imperfections. Still not sure? We are happy to help.
Send us a message and we will confirm the fit.
Couldn't load pickup availability

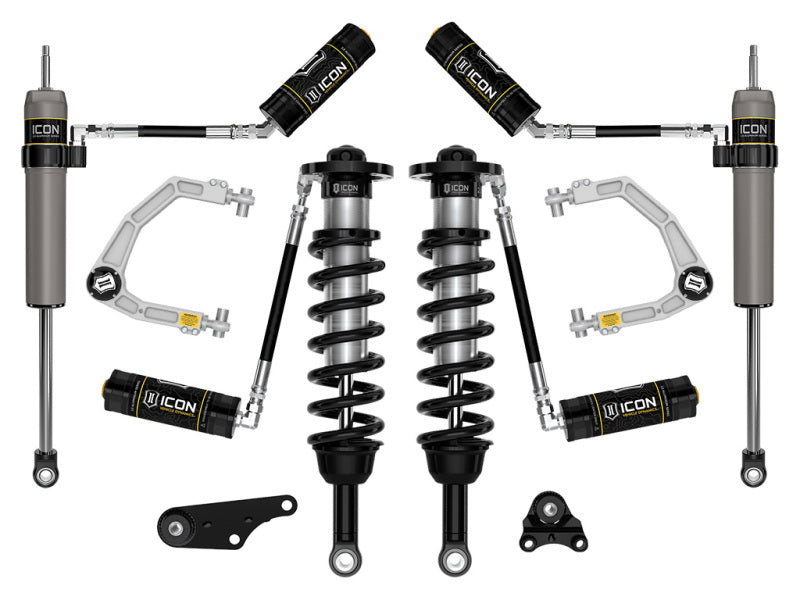

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

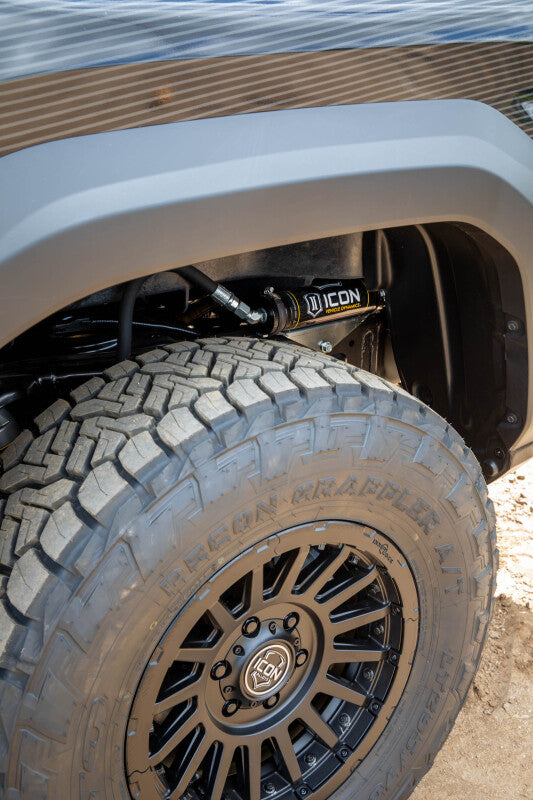

- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

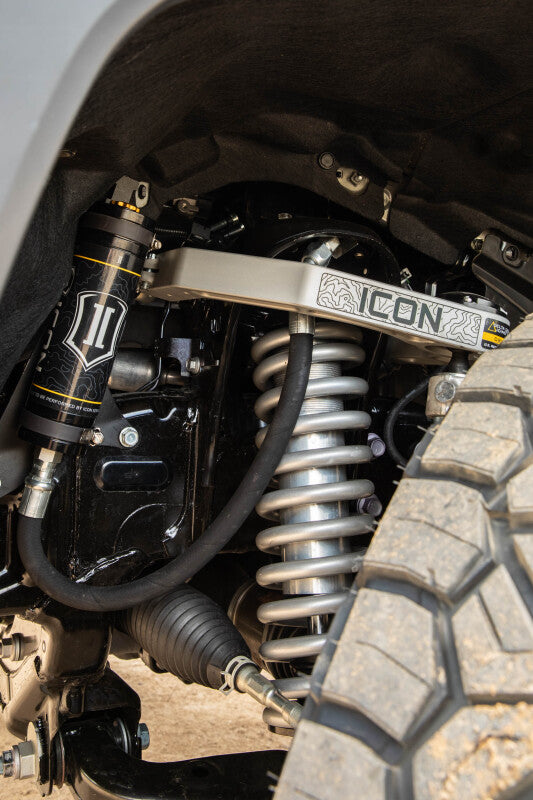

- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

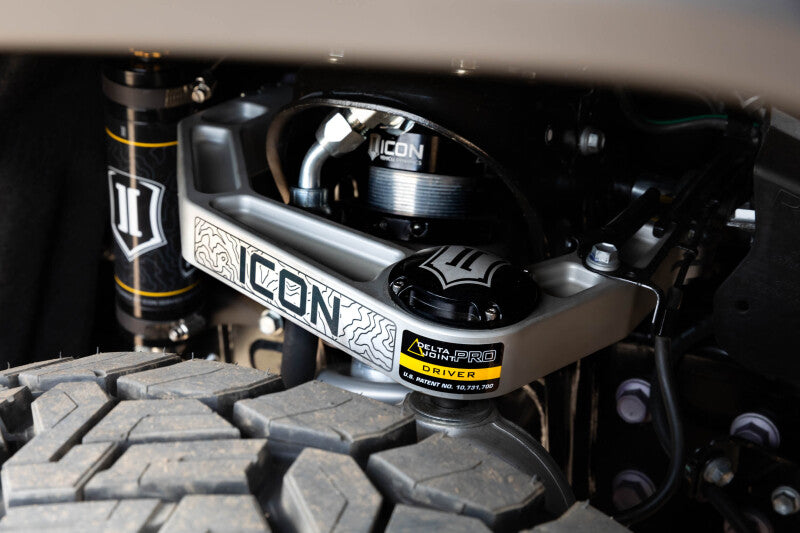

- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Increased wheel travel and improved ride quality over stock
- 6061 aircraft grade aluminum CNC machined components
- ICON engineered coil springs
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024 | Toyota | Tacoma | Limited |
| 2024-2026 | Toyota | Tacoma | SR5 |
| 2024-2026 | Toyota | Tacoma | TRD Off-Road |
| 2024-2026 | Toyota | Tacoma | TRD Sport |
