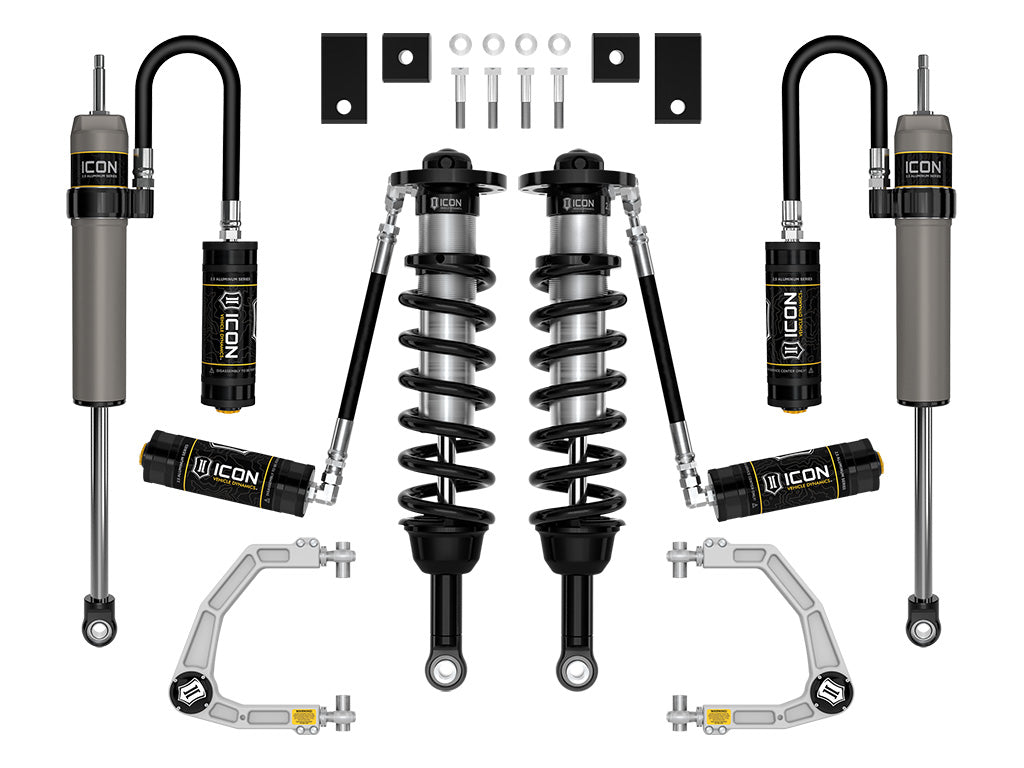

ICON 22-25 Tundra 1.25-3.5in Stage 7 Suspension System Billet

This Stage 7 system features the 2022-2026 Toyota Tundra VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet aluminum front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Adjustable front ride heights from 1.25-3.5” of front lift over stock when used with included billet aluminum UCAs
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2026 Toyota Tundra

This Part Fits:
