ICON 14-18 Ram 2500 4WD 4.5in Stage 3 Suspension System (Performance)
Why this price?
$6,357.93 is MSRP, the lowest price ICON lets us list it at. Additionally, Pro members get $317.90 back on this part.
$6,357.93 − $317.90 = $6,040.03
Special Order
This part is still available to order. Once you place your order, we’ll submit it directly to ICON, and they’ll ship it straight to you.
Delivery times can vary depending on the brand, so we can’t guarantee an exact arrival date. What we can guarantee is that we’ll stay on top of your order, monitor its progress, and keep you updated until it reaches your door.
Special-order items are typically not kept in stock by most retailers. By ordering through us, your order is placed directly with ICON, assuring you get the part as quickly as possible.
Want to get an estimated delivery timeframe before ordering? Contact us through our contact page, and we’ll be happy to find out for you.
Not sure it fits? Read our tips.
Fitment tips
Fitment can come down to more than year, make and model. Sometimes the sub-model decides, so start with the fitment table below.
- Drive type. If your car is all-wheel drive, make sure the part is for all-wheel drive, not rear-wheel drive.
- Engine size. For engine parts, make sure the engine size on the product matches your engine.
- Transmission. Manual and automatic cars often take different parts.
- Body style. Sedan or hatch, two-door or four-door, cab and bed length on trucks.
Manufacturer data can sometimes have imperfections. Still not sure? We are happy to help.
Send us a message and we will confirm the fit.
Couldn't load pickup availability

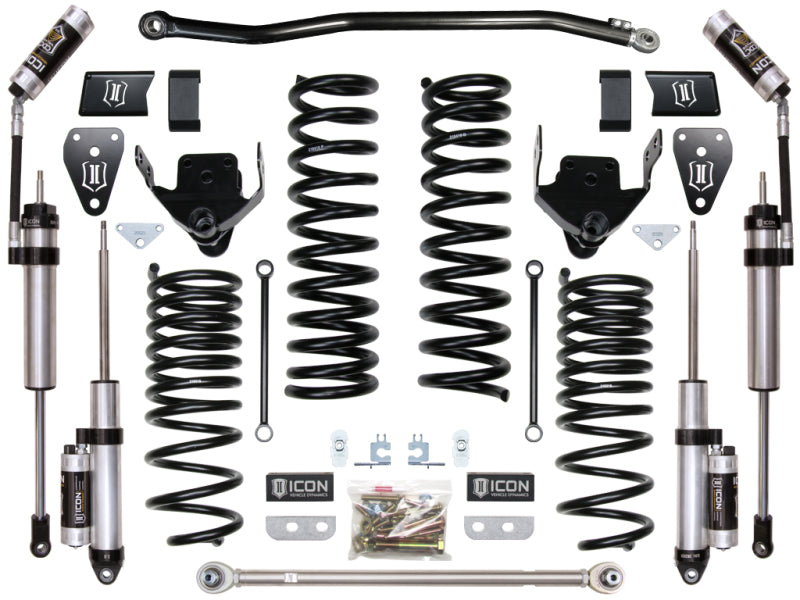

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
Installation InstructionsInstallation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
- 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
- ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
- Vehicle specific tuned front 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Performance triple rate rear coil springs provide 2" of rear lift and more compliant ride quality
- Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
- Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
- Adjustable front and rear track bars realign axles and improve strength
- Increased wheel travel and suspension performance over stock
- Level stance from front to rear of vehicle
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2026 | Ram | 2500 | Big Horn |
| 2026 | Ram | 2500 | Black Express |
| 2014-2026 | Ram | 2500 | Laramie |
| 2014-2015 | Ram | 2500 | Laramie Limited |
| 2014-2021 | Ram | 2500 | Laramie Longhorn |
| 2016-2026 | Ram | 2500 | Limited |
| 2021-2026 | Ram | 2500 | Limited Longhorn |
| 2014-2015,2019-2026 | Ram | 2500 | Lone Star |
| 2014-2016 | Ram | 2500 | Outdoorsman |
| 2023-2026 | Ram | 2500 | Rebel |
| 2014-2018 | Ram | 2500 | SLT |
| 2024-2026 | Ram | 2500 | Special Service |
| 2014-2026 | Ram | 2500 | Tradesman |
| 2026 | Ram | 2500 | Warlock |
