ICON 10-14 Ford Raptor RXT 3.0 Zeta Series Shocks RR - Driver Side Only
Why this price?
$2,321.65 is MSRP, the lowest price ICON lets us list it at. Additionally, Pro members get $116.08 back on this part.
$2,321.65 − $116.08 = $2,205.57
Special Order
This part is still available to order. Once you place your order, we’ll submit it directly to ICON, and they’ll ship it straight to you.
Delivery times can vary depending on the brand, so we can’t guarantee an exact arrival date. What we can guarantee is that we’ll stay on top of your order, monitor its progress, and keep you updated until it reaches your door.
Special-order items are typically not kept in stock by most retailers. By ordering through us, your order is placed directly with ICON, assuring you get the part as quickly as possible.
Want to get an estimated delivery timeframe before ordering? Contact us through our contact page, and we’ll be happy to find out for you.
Not sure it fits? Read our tips.
Fitment tips
Fitment can come down to more than year, make and model. Sometimes the sub-model decides, so start with the fitment table below.
- Drive type. If your car is all-wheel drive, make sure the part is for all-wheel drive, not rear-wheel drive.
- Engine size. For engine parts, make sure the engine size on the product matches your engine.
- Transmission. Manual and automatic cars often take different parts.
- Body style. Sedan or hatch, two-door or four-door, cab and bed length on trucks.
Manufacturer data can sometimes have imperfections. Still not sure? We are happy to help.
Send us a message and we will confirm the fit.
Couldn't load pickup availability

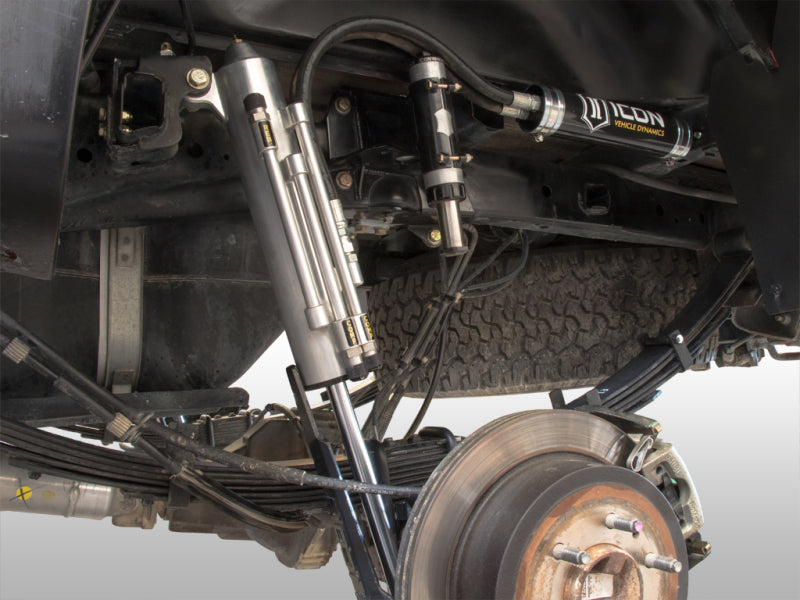

ICON RXT Rear 3.0 Remote Reservoir Bypass Shocks are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the included “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” High Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Installation Instructions- Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands
- Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
- High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
- Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
- High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
- Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
- Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
- Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
- Multi stage cad plated finish with polished and anodized top cap / rod ends
- Replaceable bypass tubes that can easily be replaced if damaged

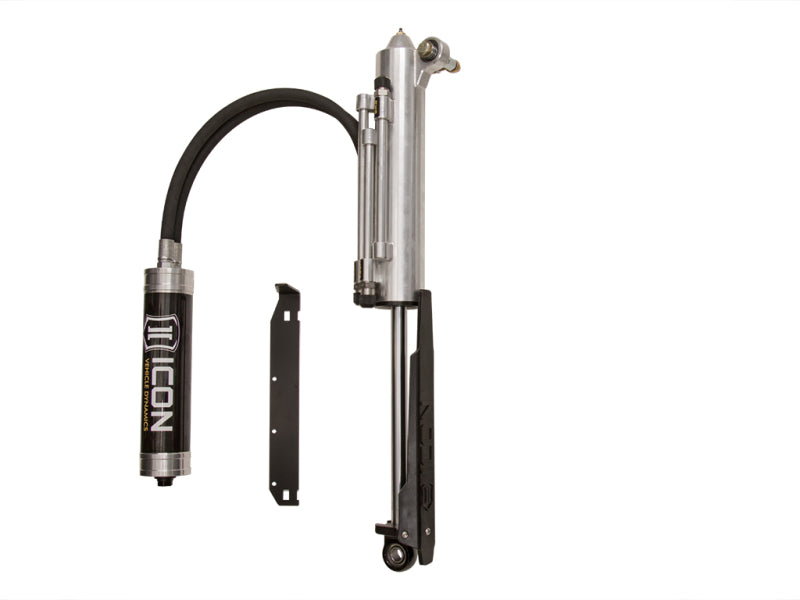

- 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
- Protective shin guards standard with every shock
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2014 | Ford | F-150 | SVT Raptor |
