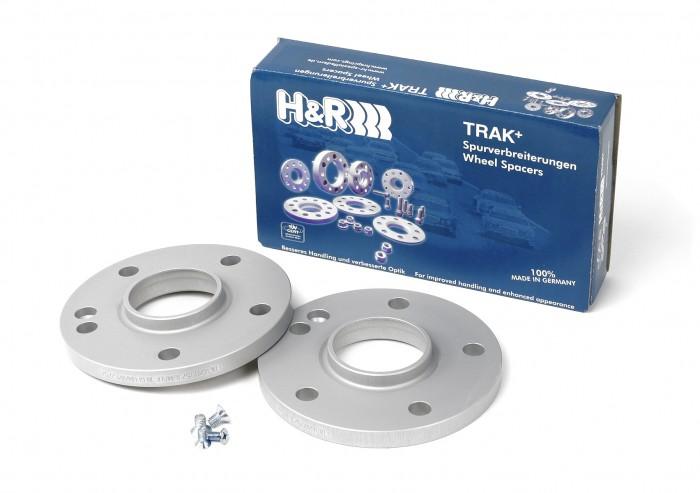

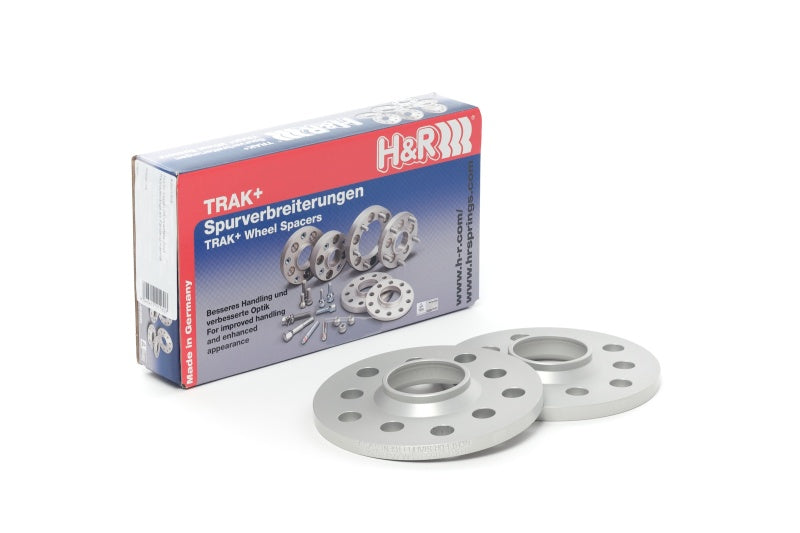

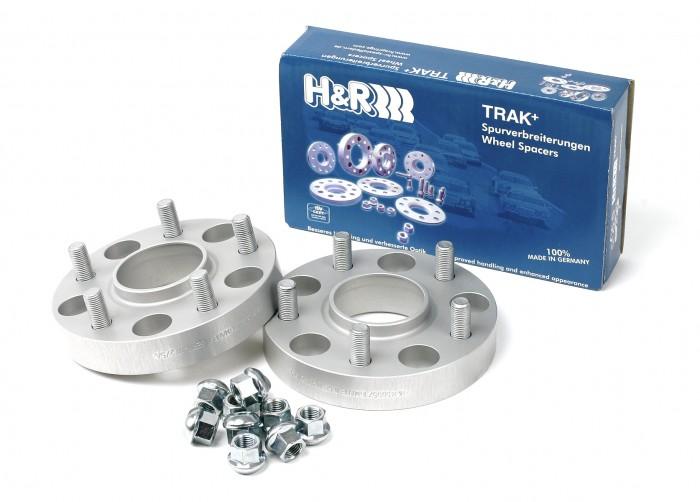

H&R Trak+ 5mm DRS Wheel Adaptor Bolt 5/114.3 Center Bore 59.5 Stud Thread 12x1.5

Depending on model, axle and year, Mazda vehicles have different diameters in the shoulder of the studs. Please see the following list for the measurements of the studs required for installation. The wheel spacers shown in the catalog will be supplied with shoulder bolts d = 13.00. If you need d = 14.85, please add a 1 at the end of the part number. DRS Wheel Spacers - Mazda DRS wheel spacers / required DRS shoulder Vehicle Model Shoulder Front Axle Shoulder Rear Axle 323 BG small 3.00 mm small 13.00 mm up to chas. no. 753743 up to chas. no. 773461 323 BG large 14.85 mm large 14.85 mm from chas. no. 753744 from chas. no. 773462 323 GT/GTR small 13.00 mm large 14.85 mm 323 BA/BJ large 14.85 mm small 13.00 mm 626 GE/GEA small 14.85 mm small 13.00 mm 626 GF/GV/GW small 14.85 mm large 13.00 mm MX 3 EC large 14.25 mm small 13.00 mm MX 5 NA small 13.00 mm small 13.00 mm up to chas. no. 133232 large 14.85 mm MX 5 NB small 13.00 mm large 14.85 mm MX 6 GE6 small 13.00 mm small 13.00 mm up to chas. no. 101861 up to chas. no. 101861 large 14.85 mm small 14.85 mm Information is subject to change without prior notice.

• Moves your wheels outward so they are flush with the fender, instantly giving you the perfect stance
• Hub centric design, proprietary alloy, higher strength, lighter weight
• Extended length hardware available
• made in Germany

This Part Fits:
