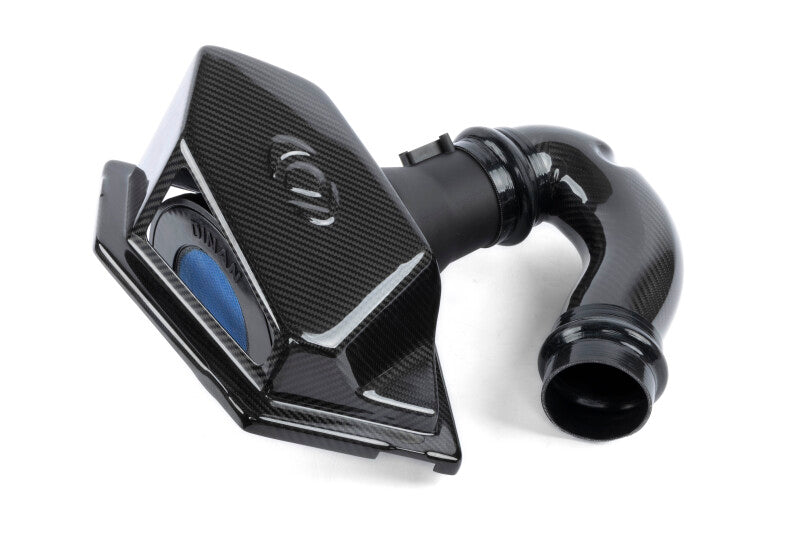

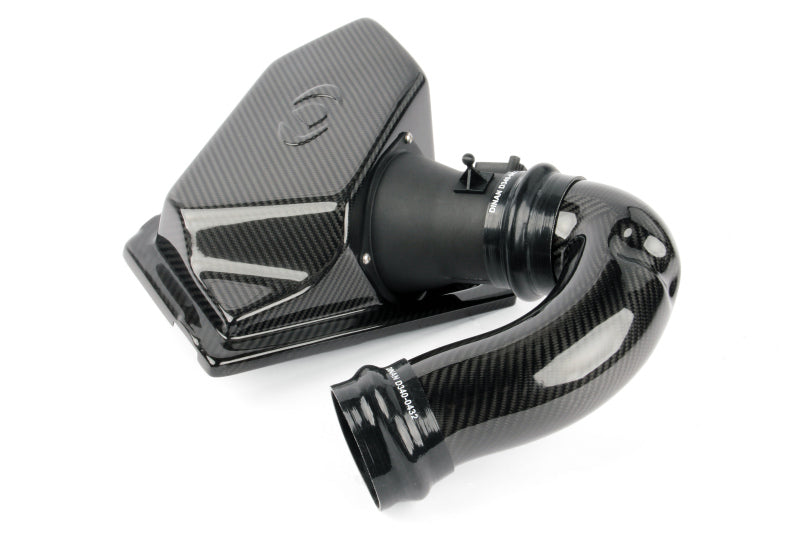

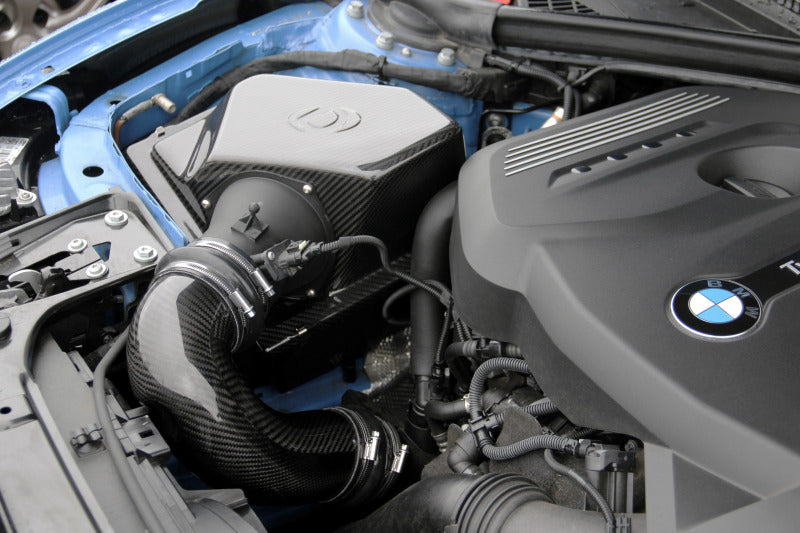

Dinan 16-21 BMW 230i/330i/430i (F22/F23/F30/F31/F32/F33/F34/F36) Carbon Fiber Semi-Open Intake

Beyond the additional sound opening the semi-open intake takes the same path to success as its closed box counterpart. Improve upon the factory design by increasing flow via a larger airbox and filter element thereby improving throttle response and lessening the strain on the turbocharger for maximum efficiency. While box and filter enlargement and redesign are a major factor in ultimately producing a more potent intake, they are not the only variables in creating a more efficient design either. The devil is in the details which is where Dinan thrives. Dinan engineers focused their attention on the intake pipe itself where numerous improvements could be made. In factory configuration, the intake tube comes complete with baffling and a small Helmholtz chamber to reduce unwanted sound. As a byproduct, these features also cause a more turbulent airflow path which robs the factory system of potential power. These two specific details are diametrically opposed to our intended market's desires, so the removal of these features was paramount. Through numerous iterations, a carbon fiber intake tube was developed that eliminated flow disruptions and allowed the natural sound of an unimpeded intake tract to sing. All told this thorough methodology of design allows the Dinan carbon fiber intake for the B46/B48 engine to elicit gains of 6 HP and 6 TRQ at 5000 RPM on a completely stock vehicle.

• 50 State Emissions Legal (partial application list): CARB EO D-176-56 (2019-21 F2x/F3x 230i/330i/430i Only)
• More Power: + 6 HP @ 5000 RPM & + 6 lb-ft @ 5000 RPM (+ 5 WHP & + 5 WTQ) without additional modifications

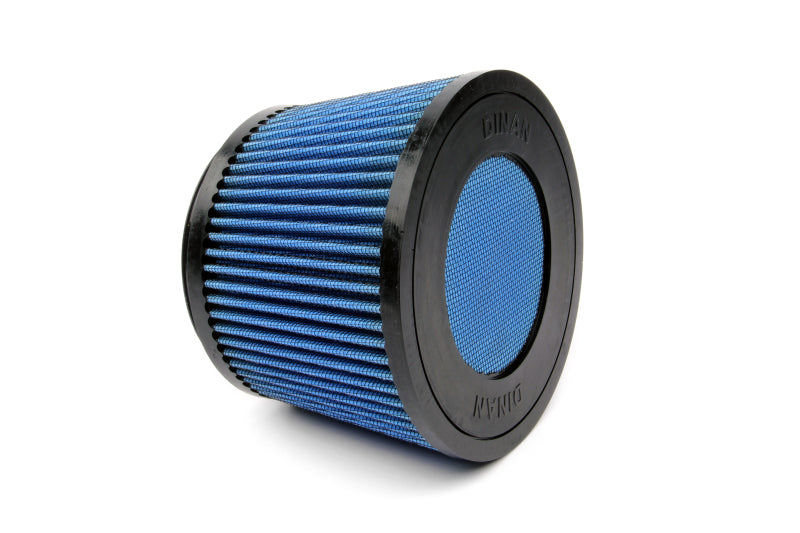

• 34% increase in filter area (stock: 76.3in², Dinan: 102.1in²) for optimum flow

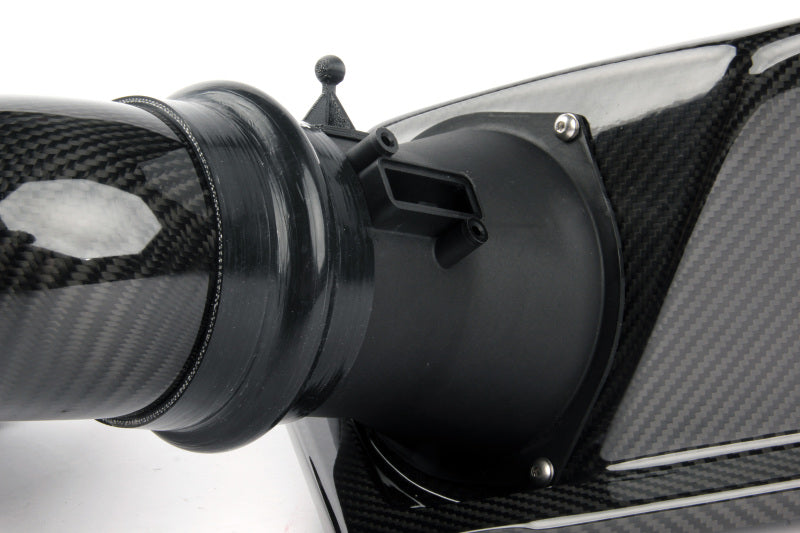

• Free flowing injection molded Air Mass Meter housing (ove 20% larger then stock)
• Larger volume air box (30% larger than stock) for increased breathability
• A pronounced sporty sound courtesy of a semi-open design

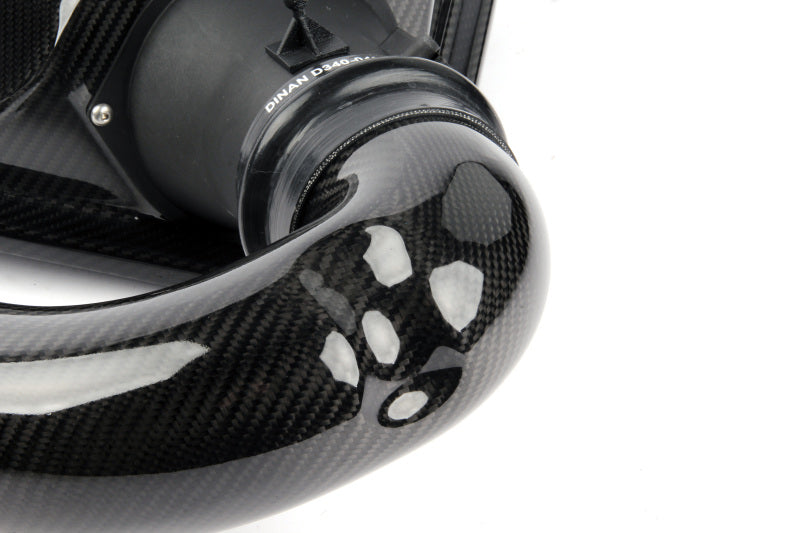

• Optimized carbon fiber intake tube
• Quick and easy installation
• Improved throttle response
