AEM VCU Universal LV Rear Harness
Special Order
This part is still available to order. Once you place your order, we’ll submit it directly to AEM, and they’ll ship it straight to you.
Delivery times can vary depending on the brand, so we can’t guarantee an exact arrival date. What we can guarantee is that we’ll stay on top of your order, monitor its progress, and keep you updated until it reaches your door.
Special-order items are typically not kept in stock by most retailers. By ordering through us, your order is placed directly with AEM, assuring you get the part as quickly as possible.
Want to get an estimated delivery timeframe before ordering? Contact us through our contact page, and we’ll be happy to find out for you.
Couldn't load pickup availability

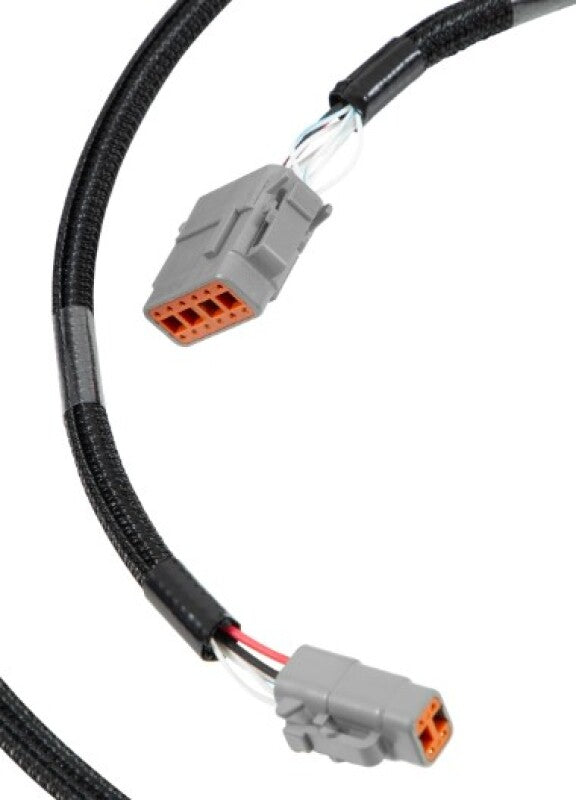

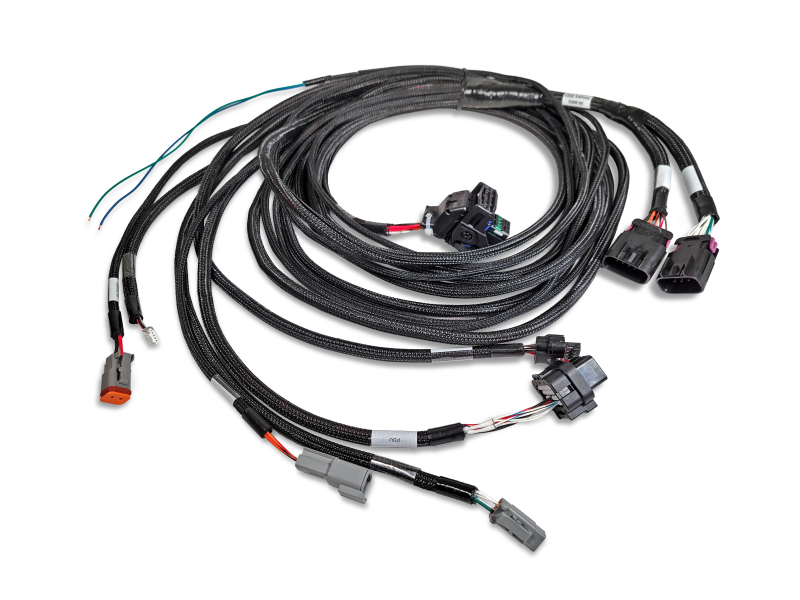

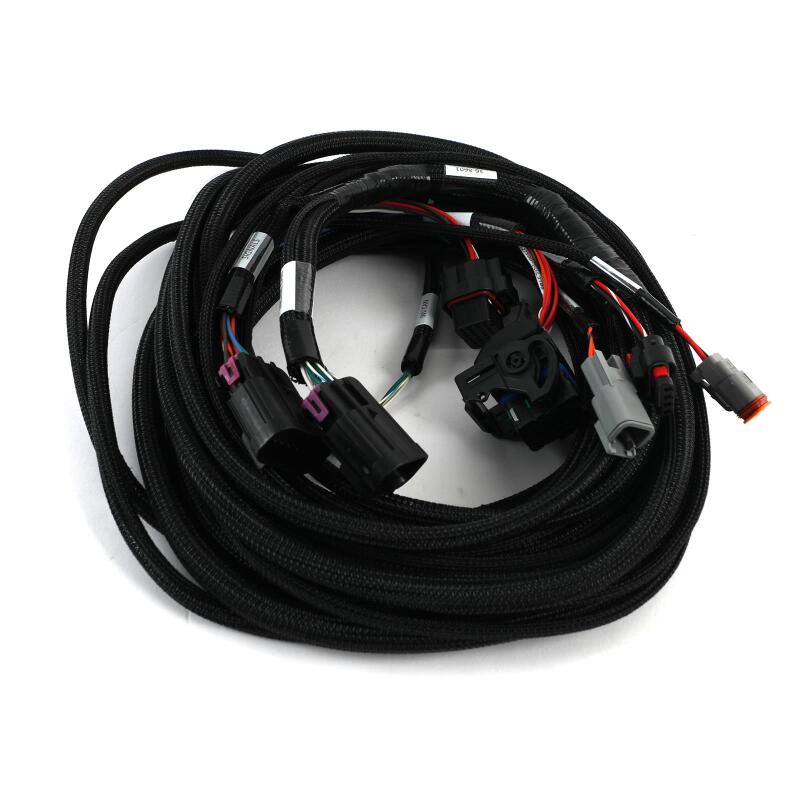

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.
Installation Instructions- Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
- Isabellenhutte (IVTS) - current voltage shunt based measuring system
- J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
- Inverter High-Voltage Interlock (HVIL)
- Connector interface features include:
- Power Distribution Unit (PDU)
- Combined Charging Unit (CCU)
- Inverter Power (INV PWR)
- Inverter CAN (INV CAN)
- Inline Signals
- Inline CAN
