S&S Cycle 53-80 BT Oil Passage Drill Jig
Special Order
This part is still available to order. Once you place your order, we’ll submit it directly to S&S Cycle, and they’ll ship it straight to you.
Delivery times can vary depending on the brand, so we can’t guarantee an exact arrival date. What we can guarantee is that we’ll stay on top of your order, monitor its progress, and keep you updated until it reaches your door.
Special-order items are typically not kept in stock by most retailers. By ordering through us, your order is placed directly with S&S Cycle, assuring you get the part as quickly as possible.
Want to get an estimated delivery timeframe before ordering? Contact us through our contact page, and we’ll be happy to find out for you.
Couldn't load pickup availability

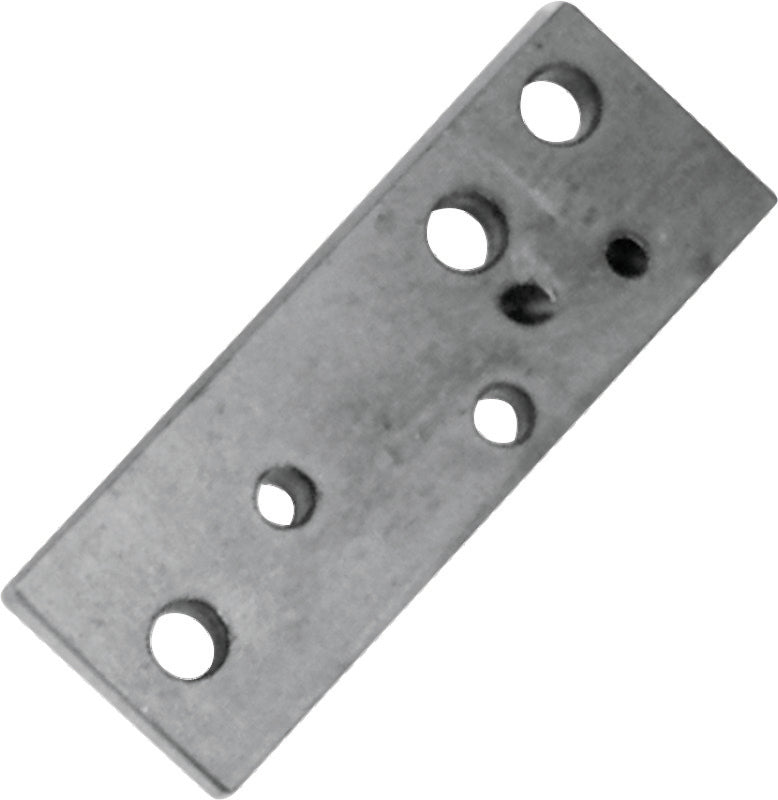

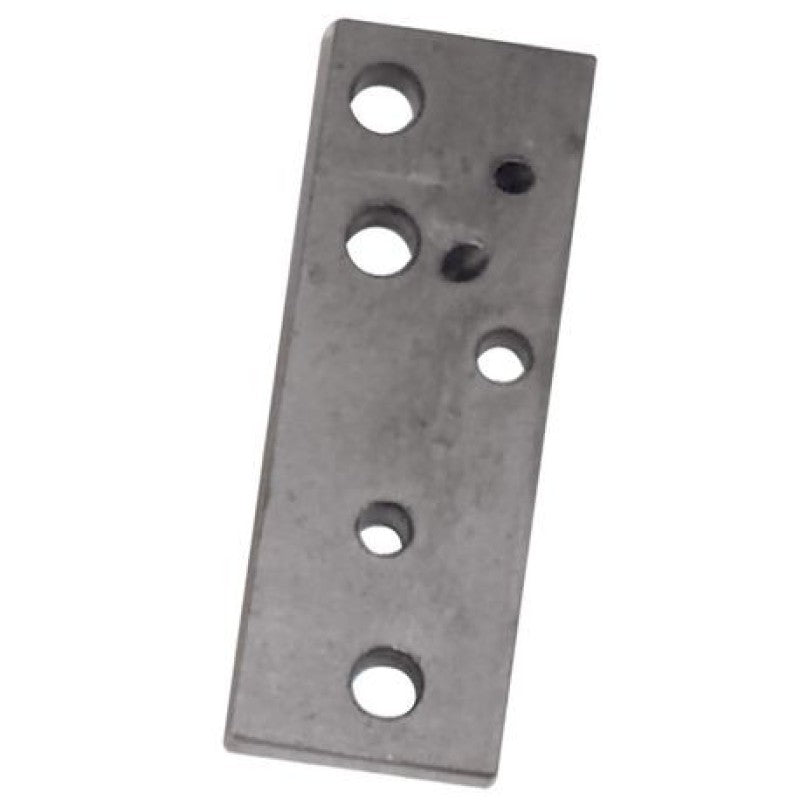

The S&S crankcase oil passage drilling jig is used to perform crankcase drilling modifications when installing an S&S oil pump assembly on early big twin crankcases. Made of hardened steel for durability, this fixture enables the builder to do four modifications.
- Primary chain oil supply passage from the breather valve gear cavity to the back side of the oil pump body on late generator and early alternator crankcases
- Pressure relief passage from behind the main oil pressure valve to the gear cavity on alternator crankcases
- Crankshaft and main bearings supply passage on early alternator crankcases
- Crankshaft and main bearings supply passage on generator crankcases
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1986-1990 | Harley-Davidson | FLST Heritage Softail | Base |
| 1988-1991 | Harley-Davidson | FLSTC Heritage Softail Classic | Base |
| 1990-1991 | Harley-Davidson | FLSTF Fat Boy | Base |
| 1987-1991 | Harley-Davidson | FXLR Low Rider Custom | Base |
| 1982-1991 | Harley-Davidson | FXRS Low Glide | Base |
| 1983-1991 | Harley-Davidson | FXRT Sport Glide | Base |
| 1977-1982 | Harley-Davidson | FXS Low Rider | Base |
| 1983-1985 | Harley-Davidson | FXSB Low Rider - Belt | Base |
| 1984-1991 | Harley-Davidson | FXST Softail Standard | Base |
| 1988-1991 | Harley-Davidson | FXSTS Springer Softail | Base |
| 1980-1986 | Harley-Davidson | FXWG Wide Glide | Base |
