ICON 2010+ Toyota FJ/4Runner S2 Stage 3 Upgrade System
Couldn't load pickup availability

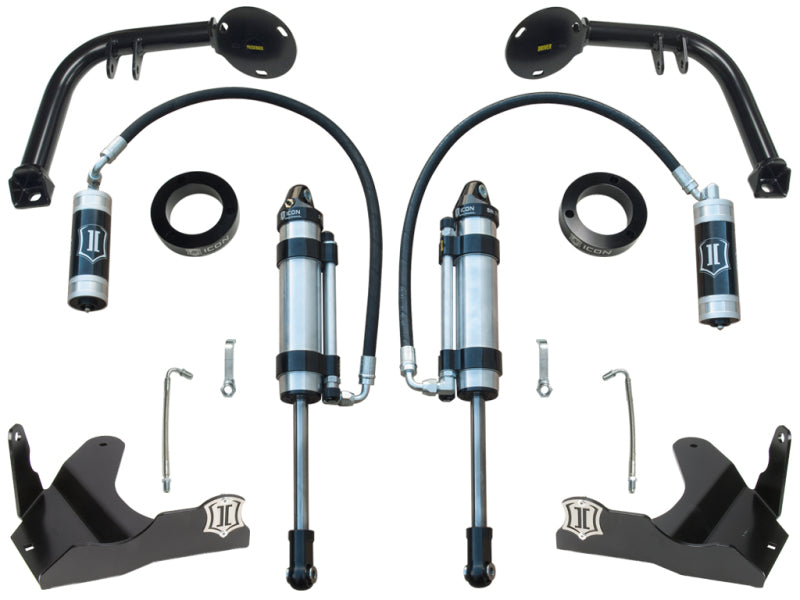

The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of secondary 2.5 Aluminum Series remote reservoir Omega bypass shocks means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. The ICON Omega Bypass shocks feature two bypass tubes, creating multiple damping zones within the shocks, and externally adjustable bypass valves that restricts oil flow through the tubes to provide 28 settings of compression and rebound adjustment, with no tools required. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 4Runner/FJ Cruiser owners to upgrade in steps or all at once.
Installation InstructionsInstallation Instructions
Installation Instructions
- 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Omega Series two-tube bypass allows for compression and rebound damping adjustment
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- Mostly bolt-on design makes for straightforward install
- Drastically improves vehicle damping ability off-road
- Shocks are fully rebuildable and revalveable
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023 | Toyota | 4Runner | 40th Anniversary Edition |
| 2010-2024 | Toyota | 4Runner | Limited |
| 2020-2021 | Toyota | 4Runner | Nightshade |
| 2010-2024 | Toyota | 4Runner | SR5 |
| 2018-2024 | Toyota | 4Runner | SR5 Premium |
| 2010-2016,2021-2022 | Toyota | 4Runner | Trail |
| 2017-2024 | Toyota | 4Runner | TRD Off-Road |
| 2018-2024 | Toyota | 4Runner | TRD Off-Road Premium |
| 2015-2024 | Toyota | 4Runner | TRD Pro |
| 2022-2024 | Toyota | 4Runner | TRD Sport |
| 2020-2021 | Toyota | 4Runner | Venture |
| 2010-2014 | Toyota | FJ Cruiser | Base |
