ICON 2008+ Toyota Land Cruiser 200 3.0 Series Shocks VS RR CDCV Coilover Kit
Special Order
This part is still available to order. Once you place your order, we’ll submit it directly to ICON, and they’ll ship it straight to you.
Delivery times can vary depending on the brand, so we can’t guarantee an exact arrival date. What we can guarantee is that we’ll stay on top of your order, monitor its progress, and keep you updated until it reaches your door.
Special-order items are typically not kept in stock by most retailers. By ordering through us, your order is placed directly with ICON, assuring you get the part as quickly as possible.
Want to get an estimated delivery timeframe before ordering? Contact us through our contact page, and we’ll be happy to find out for you.
Fitment tips
Fitment can come down to more than year, make and model. Sometimes the sub-model decides, so start with the fitment table below.
- Drive type. If your car is all-wheel drive, make sure the part is for all-wheel drive, not rear-wheel drive.
- Engine size. For engine parts, make sure the engine size on the product matches your engine.
- Transmission. Manual and automatic cars often take different parts.
- Body style. Sedan or hatch, two-door or four-door, cab and bed length on trucks.
- Mid-year changes. Some models changed partway through a year. Your build date is on the door jamb sticker.
Manufacturer data can sometimes have imperfections. Still not sure? We are happy to help.
Send us a message and we will confirm the fit.
Couldn't load pickup availability

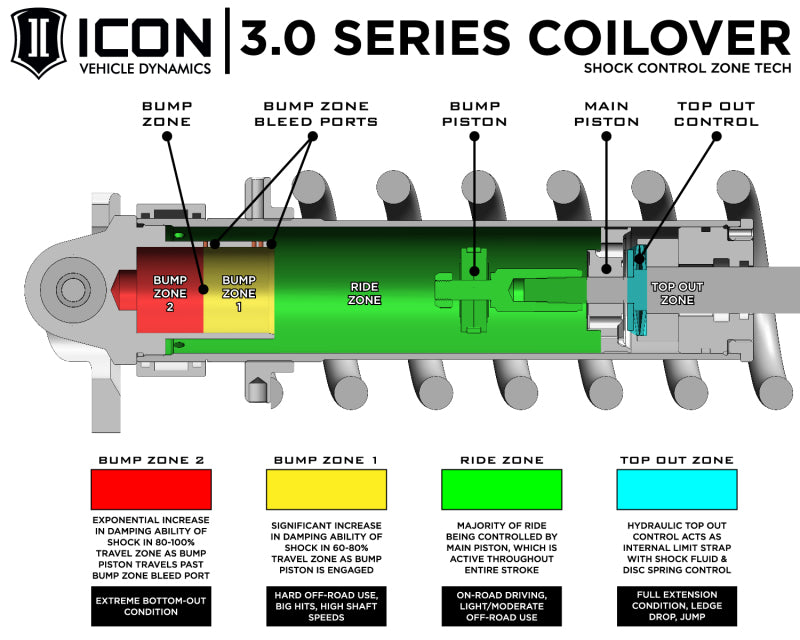

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
Installation Instructions- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Significant increase in damping ability for excellent performance in extreme off-road conditions
- High quality ICON-engineered Eibach springs offer increased travel and performance
- PTFE lined COM12 spherical bearings ensure maximum strength and durability
- Multi stage CAD plated shock body with hard anodized piston and top cap
- Direct bolt-in to OEM shock location makes for an easy install
- Adjustable coilovers provide 2.25-3.5” of front lift height
- Heavy duty 1” CNC machined shock shafts
- Fully serviceable
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008-2011,2013-2021 | Toyota | Land Cruiser | Base |
| 2020-2021 | Toyota | Land Cruiser | Heritage Edition |
